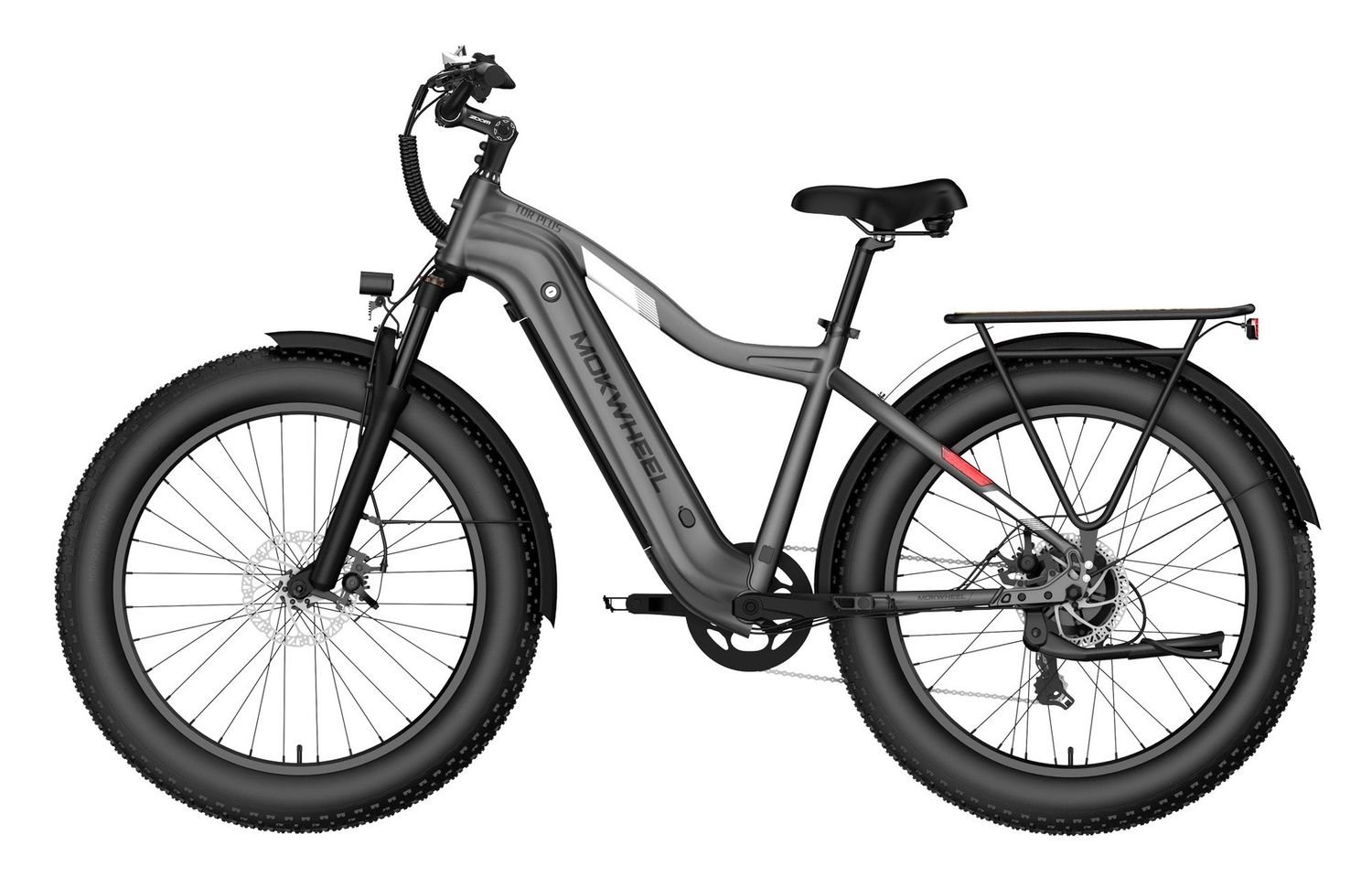

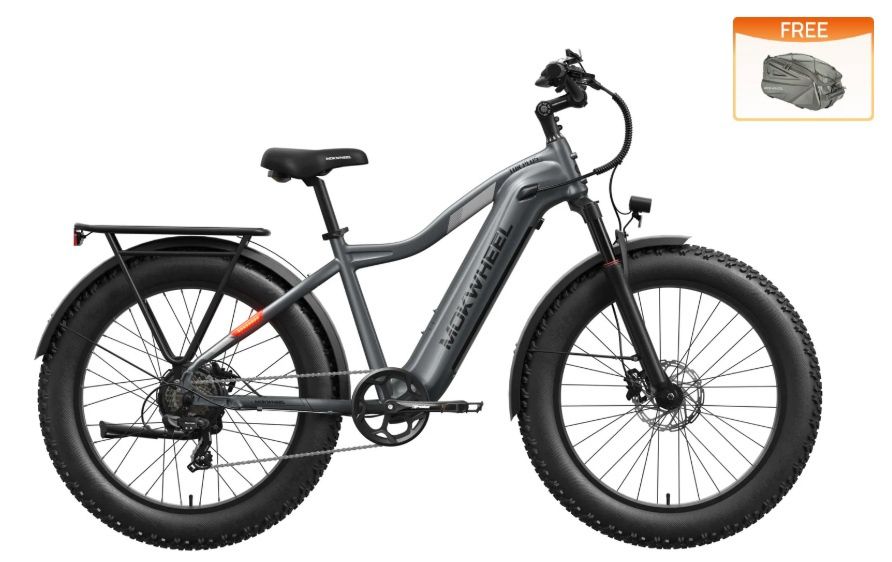

Tor Plus

Technical & Specifications

Size & Fit

Tor Plus comes in 1 size to suit most adults

Rider Height: 5'6" - 6'8"

Reach 17"

Top Tube Length 25"

Standover Height 29"

Wheelbase 46"

Min Saddle Height 35"

Max Saddle Height 42"

Total Length 75"

Head Tube Length 6"



Technical

Battery48V 16Ah ,Complies with UL standards

Charger48V 3A

MotorContinuous Power: 750W

Peak Power: 1100W

Torque: 90Nm+

Speed Class20 mph (Throttle) / 28 mph (PAS)

Weight81 lbs

Range50~60miles

Payload Capacity450 lbs

Performance

SensorCadence Sensors

BrakesLogan HD-E480 hydraulic brakes

Tires26" x 4.0" Fat tires

DisplayLED Integrated

Brake leverAluminum Alloy

ChainKMC Stainless Chain

Crank Set46Tcassette, 170mm crank

Derailleur7-speed Shimano

Front Fork110mm fork travel

Frame6061 Aluminum Alloy

GearingShimano 7-Speed

ThrottleThumb Throttle

Handlebar28" Aluminum Alloy

Kickstand13" Aluminum

RimsAluminum Alloy

SaddleCustomized Comfort Leather Seat

SpokesHeavy-duty carbon steel, 12G × 248 mm (front) / 219 mm (rear)
